7inch 1080P thermo camera IP camera Human Body Temperature Detect thermal imager camera

Facial Recognization thermal imager cameray infrared HD camera 7inch 2MP IP camera Human Body Temperature Detect Access Control

1.Can be controlled by VMS;
2. Broadcast language: support English, Japanese, Italian, Spanish, German, French, Portuguese, Russian, Korean, Turkish;
3.App language: English

Build in Original Germany Temperature Sensor

Temperature test, more stable and more accurate!

Product Features

– Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
– Temperature measurement range 30-45 (℃) Accuracy ± 0.5 (℃)
– Automatically identify unmasked personnel and provide real-time warning
– Support mid-range temperature measurement and real-time warning of high temperature
– Support temperature data SDK and HTTP protocol docking
– Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
– Support binocular live detection
– Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
– Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
– Adopt Linux operating system for better system stability
– Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
– 7-inch IPS HD display
– IP34 rated dust and water resistant
– MTBF> 50000 H
– Support 22400 face comparison library and 100,000 face recognition records
– Support one Wieg and input or Wieg and output
– Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields
Scene demand
– Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)

Facial Recognition Camera thermal infrared HD camera 2MP Human Body Temperature Detector Access Control

Picture Shows

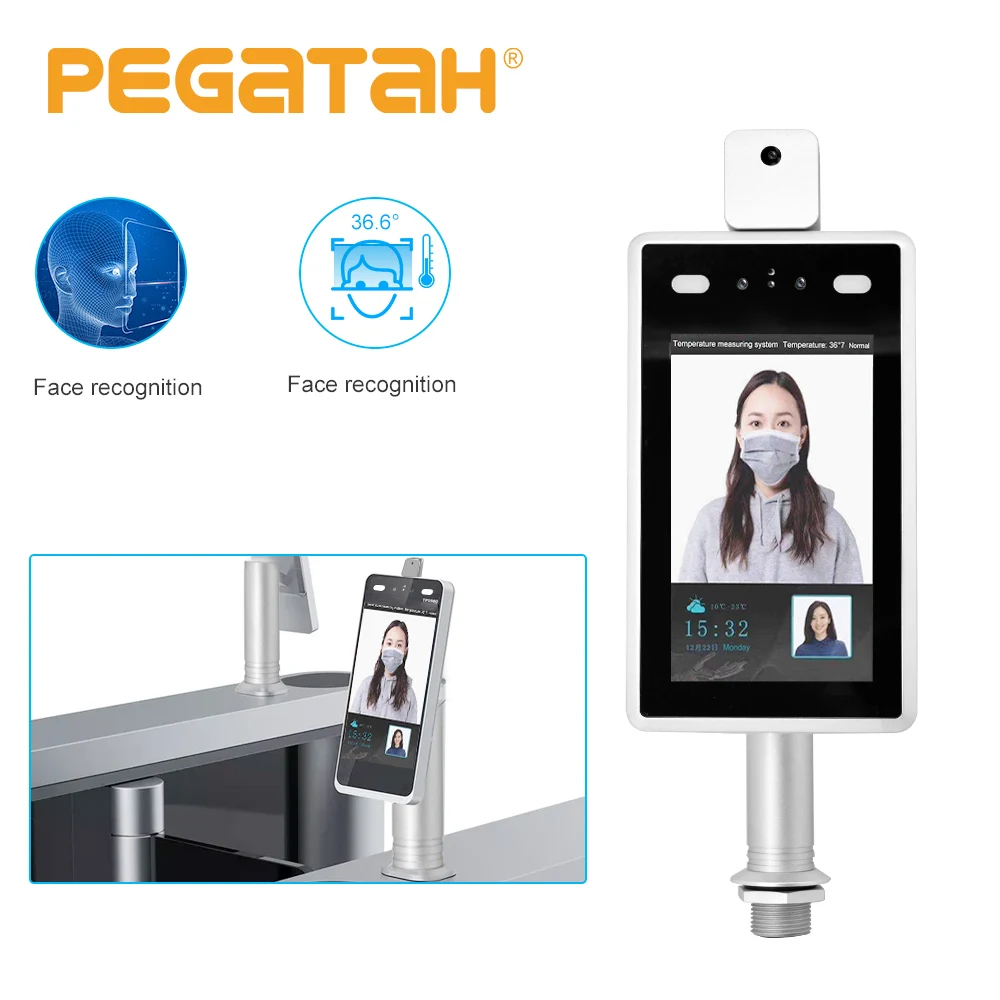

Face temperature test camera

Physical Characteristics

Audio： Built-in 2ch audio output
Working Humidity：-10°C ~50°C
Working Humidity：0%-90% RH
Power Consumption：5W

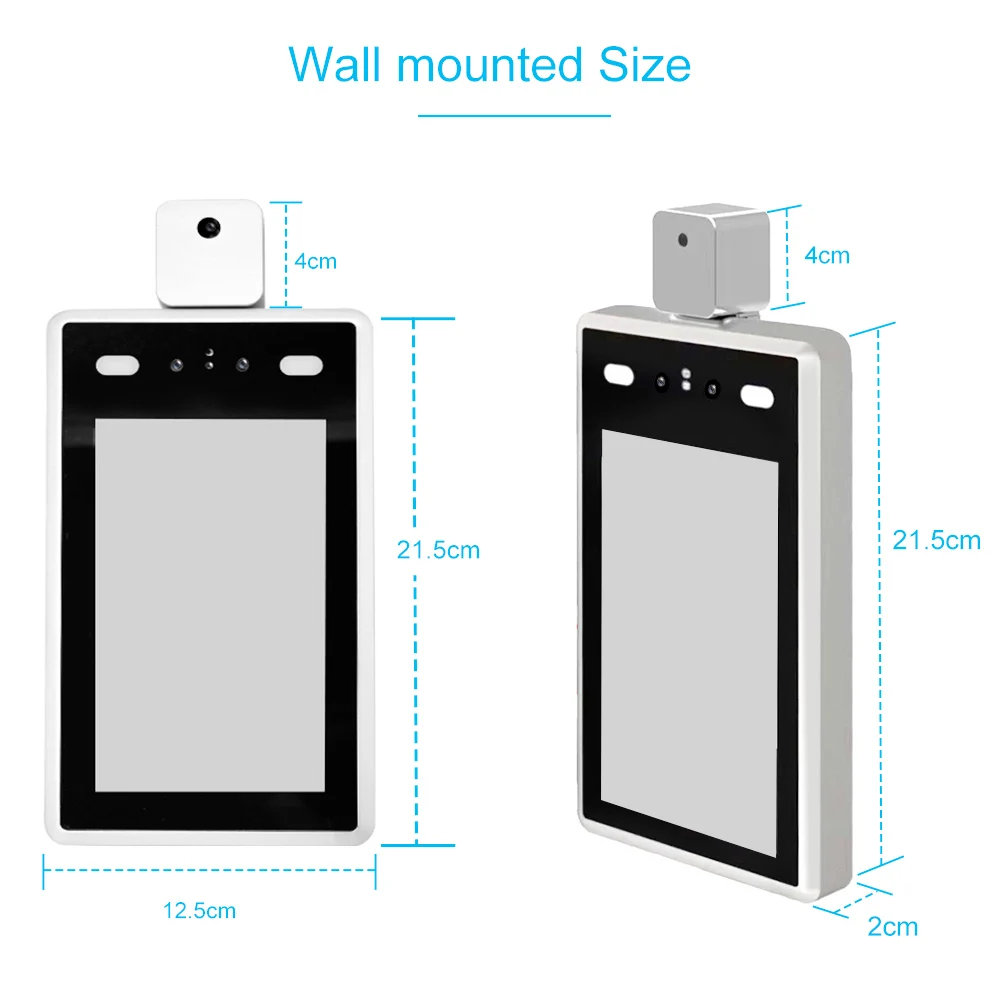

size ：215x125x20mm

Thermal

Sensor: Thermal imaging infrared temperature sensor
Range：35~42℃，
Precision： ±0.3℃
Detect distance: 0.4m~0.7m
White balance:Auto, indoor, outdoor, sodium lamp mode, manual
Digital noise reduction:Support DNR,3DNR
Day and night mode: Fixed color

AI

Number of face bases: 50,000 sheets
Recognition speed: ≤300ms
Live detection: support
Mask detection: support
Body temperature alarm: support

Visible parameters

Lens: focal length 1.8mm， Field of View：118°
Dynamic Range: ≥120dB
S/N Ratio: ≥46dB（AGC OFF）
Exposure mode: Program mode (customizable shutter interval), shutter mode（1/5 – 1/20,000s）support for slow shutter

Video

Video Format: H.265 Main Profile / H.264 High profile / M-JPEG
Bit rate: Fixed code stream (CBR) or variable code rate (VBR), code stream can be set from 32Kbps to 10Mbps
Video size: 1920×1080@30fps
Frame rate: 25fps
Video settings:Exposure (shutter), gain, contrast, saturation, face exposure compensation
Video overlay :Time, Position point name
BLC: :Support

Recognition characteristics

Working Mode: Online, Offline, Automatic
Identifying content:Portrait, Optional (gender, age, helmet)
Recognition type: 1：N, 1：1
Detection type :Live detection
Recognition speed: ≤100ms
Recognition rate: ≥99%
Recognition distance: 0.3-0.5m
Faces Base: 2W-5W
Faces: Single image, batch image, real-time snapshot image import

Interface

power: DC12V
network: 1ch10/100BaseT Ethernet RJ45 interface
Wiegand： 1ch Wiegand output interface
Switch： 1ch relay output
SD card： Up to 128G
MIC： Built-in
